Brand: BOL
Model: BOL-CHARGER-DATA
Product Specification:
Features:
- High speed sample rate negative delta voltage and zero delta voltage auto-detect cut off circuit with MOSFET control for peak detection. Pulsation charge method to prevent overcharge and overheat.
- Charge Ni-MH battery by Zero delta voltage technology without using thermo-detection probe.
- User selectable charging mode for Ni-CD and Ni-MH battery.
- Front panel with "MODE" buttons and dial log to switch between:
CHARGE, DISCHARGE, 1 CYCLE and 3 CYCLE
- Selectable charging current from 0.5A-6.0A in 0.1A steps via Dial Log.
- 3 LED indicator for SLOW CHARGE, FAST CHARGE and DISCHARGE.
- 4-digit LCD display with back-light showing output voltage, output current, battery capacity, peak voltage and duration.
- 8-Bit 8MHz CPU with 2KB ROM, 128B RAM, 8 channel 10-Bit AD and 8-Bit PWM current control.
- Volt threshold 4mV/cell for Ni-CD and Ni-MH battery.
- Auto-detect number of cells of battery pack.
- 0.1A trickle current after mode finished.
- Reverse polarity protection system.
- Auto-detect switching power supply (110-220V AC).
- Single & Triple Cycling Modes.
- 6cm cooling fan with thermo detection.
Specifications:
- Input Voltage: DC 12.0-13.8V (Charger)/ AC 110-220V (Power Supply)
- Battery cells support: 4-8 Pcs
- Battery pack voltage range: 4.8-12.8V (with supplied Power Supply)
- Charging current: 0.5-6.0A
- Discharging current: 5.0A
Model: BOL-CHARGER-DATA

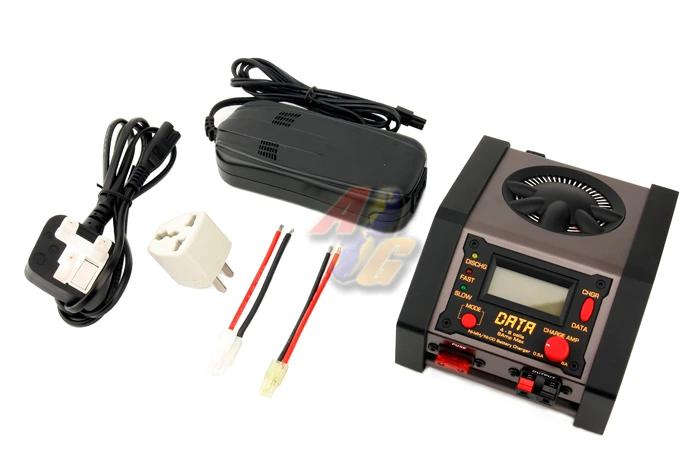

BOL Charger "DATA"
