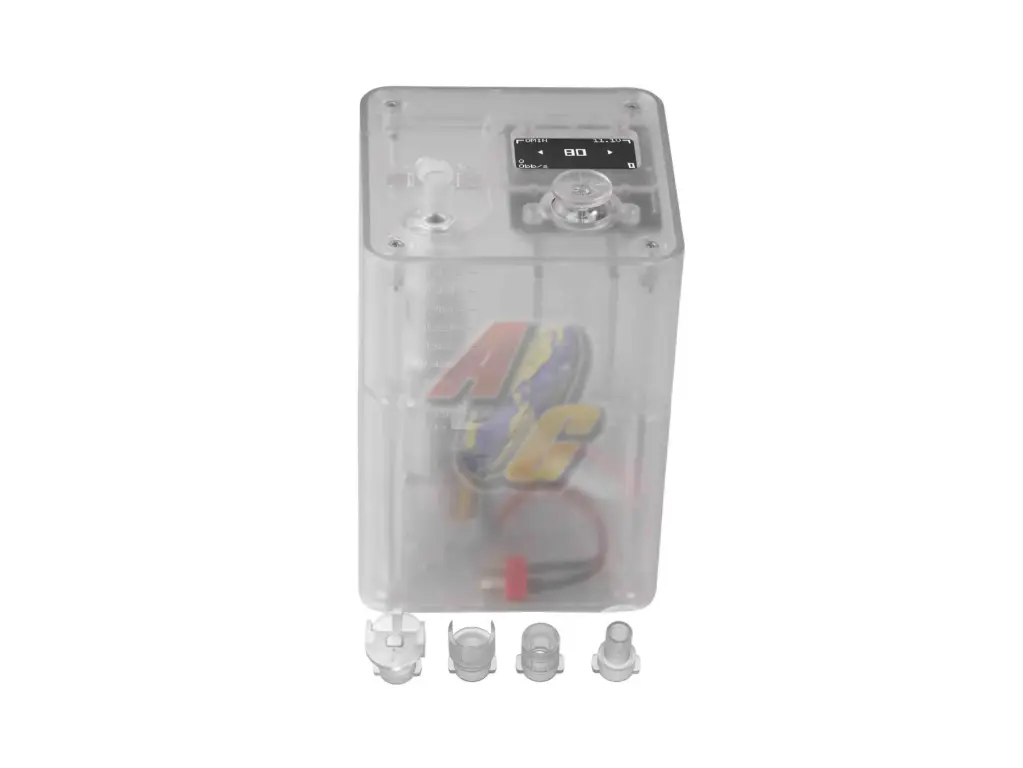

T238 Electric Speed Loader PRO Edition

The T238 Electric BB Speed Loader PRO Edition is an smart loading system designed for Airsoft magazines. Powered by a 3S LiPo battery and high-torque motor, it enables rapid reloading for GBB, AEG, and other standard magazines. It features fixed-count loading mode and dynamic loading mode, with a 5-way button and OLED screen for customizable settings and real-time data display. Built-in jam clearing, anti-stall protection, and low-voltage cutoff ensure stable and efficient operation.



Features:

- Supports 2S/3S LiPo batteries with automatic cell count detection

- Support Manual Loading Mode and Fixed Quantity Mode

- Max loading speed: 21 BBs/sec (@12.6V)

- Max thrust: 23.5N – Easily loads PTS EPM1 250-rd magazines

- Includes 4 nozzle adapters for GBB/AEG/Spring bolt action replica magazines

- Empty Loader alert: Buzzer + OLED warning when speed loader is running out of BBs

- Real-time stats display: Voltage/BB count/loading speed

- Anti-stall protection: Prevents gear damage during stall

- Jam clearing function: Vibrates gears to resolve jams

- Smart safeguards: Low/high voltage cutoff/Overheat protection/Auto-shutdown after prolonged inactivity



Specifications:

1. Basic Information

 - Size: 95×95×147mm

 - Weight: 670g(Empty)

- Material: PC(Some are aluminum alloy parts)



2. Performance

 - Capacity: About 1800 (6mm BB)

 - Speed: 17-21BBs/S(@3S battery),  13-16BBs/S(@2S battery)

 - Loading thrust: About 23.5N



3. Electrical Specifications

 - Input：DC 6V-13V

 - Power consumption:

   1. Standby state after startup: 0.3W @2S battery/0.46W @3S battery

   2. No-load working state: 2.2W~3.7W(@2S battery)/3.3W~5.6W@3S battery

   3. Maximum power: 30W

 - Battery: T-shaped plug, maximum supported size is 122x19x16mm (not included)



4. Compatible magazines: Various normal magazines (spring type magazines)

 - Adapter A: Suitable for most AEG magazines such as AK, AR, etc

 - Adapter B: Suitable for gas shotgun shell

 - Adapter C: Suitable for most bolt action spring replica magazines

 - Adapter D: Suitable for most GBB magazines such as WE/GHK/MWS/MARUI
